Optimize Your HVAC Duct Fabrication with Engel Button Punch Snap Lock Roll Formers

The Engel Button Punch Snap Lock Roll Formers form a two piece seam that greatly simplifies ductwork assembly. The male seam is a button, the female seam is a lock, and the two snap together for a flush corner. Not only do these locks assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport too.

Engel Button Punch Snap Lock Seam Roll Former Specs

These machines are available in eight forming station machines. An optional slitter attachment is available to fit each sheet metal shop's specific needs.

The Button Punch Snap Lock Roll Former is available in 3 models, each with different gauge capacities.

Model

Capacity

Depth of Pocket / Size

Speed

Motor / Voltage

Dimensions / Weight

HB-800B-24

24-28 gauge

1/2" — uses approximately 1-13/16" of material

90 feet per minute

5HP, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM
Other motors available upon request

Length: 60"

Width: 24"

Height: 37"

Passline: 34"

Weight: 950 lbs.

HB-800B-20

20–26 gauge

1/2" — uses approximately 1-13/16" of material

90 feet per minute

5HP, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM

Other motors available upon request

Length: 60"

Width: 24"

Height: 37"

Passline: 34"

Weight: 950 lbs.

HB-800B-18

18-24 gauge

1/2" — uses approximately 1-13/16" of material

90 feet per minute

5HP, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM

Other motors available upon request

Length: 60"

Width: 24"

Height: 37"

Passline: 34"

Weight: 950 lbs.

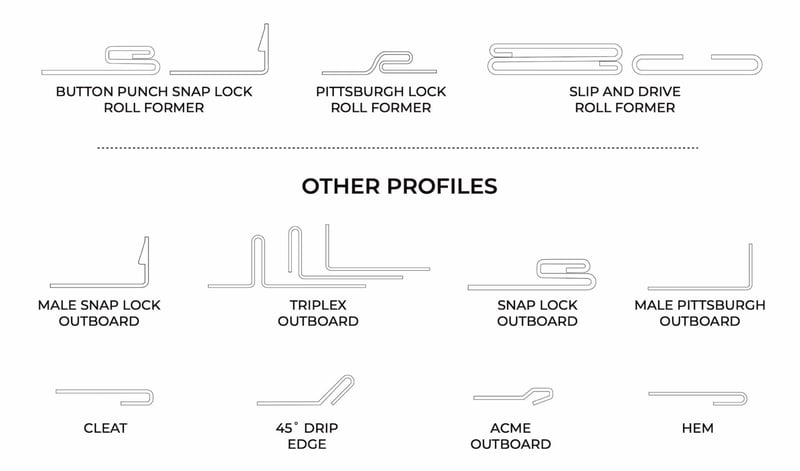

Featured Seam Profiles

Engel-800-Series-Roll-Former-Profiles-min

Solutions from the Engel 800 Series

To learn more about the Button Punch Snap Lock Roll Former and download our brochure, click here.

To learn more about other Engel 800 Series Roll Formers, click here:
