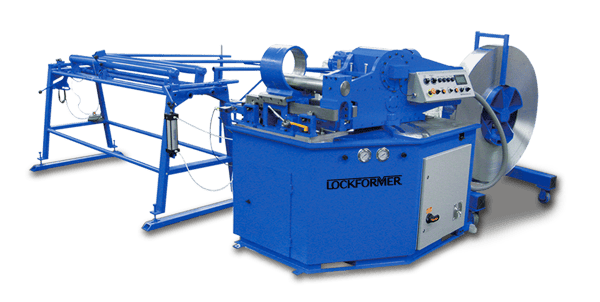

The Lockformer Spiral Tube Former 2.0 revolutionizes HVAC duct and fitting fabrication, providing solutions to common challenges encountered during the creation of spiral tubes. Through cutting-edge technology and innovative design, this machine enhances the efficiency and quality of spiral tube manufacturing.
Lockformer Spiral Tube Former 2.0 Features
The Spiral Tube Former 2.0 combines the benefits and features of both previous machine models, offering both high-speed and heavy gauge capacities.
|
High Speed Capacity |
Heavy Gauge Capacity |
|
16-28 gauge (0.016 – 0.065”) galv. steel |
14 gauge (0.066 – 0.079”) galv. steel |
|
20-28 gauge (0.016 – 0.040”) stainless steel |
18 gauge (0.041 – 0.050”) stainless steel |
|
Speeds up to 344 FPM |
Speeds up to 287 FPM |
- Powered by a frequency drive electric motor, it runs quietly while reliably producing smooth, high-quality spiral pipe.
- With one of the smallest fully automatic footprints in the industry, its compact size does not sacrifice speed, power, or technology.
- The innovative Spiral Smart Technology™ (SST) via MestekNet Control Software incorporates a precise length-cutting system with efficient self-diagnostics and operator set-up requirements.
- On-the-fly slitting device delivers an accurate, quiet cut that eliminates burrs, sparks, and excessive saw noise for tubes of a minimum 4” diameter and maximum material thickness of 20 gauge.
- Compact design allows for trailer-mounting, easy transport to job site, and installation into the tightest of workplaces.
- Compatible with a wide range of CAM programs for convenient download and integration.
Precise Seam Quality
Achieving consistent seam quality is crucial in spiral tube fabrication to ensure structural integrity and prevent air leakage. The Lockformer Spiral Tube Former 2.0 addresses this challenge with advanced seam welding capabilities, resulting in uniform and durable seams that minimize the risk of leaks and enhance overall duct reliability.
Dimensional Accuracy
Maintaining precise dimensions throughout the production process is essential to avoid mismatches in fittings and installation difficulties. The Lockformer Spiral Tube Former 2.0 tackles this issue with its precise control system, allowing operators to adjust parameters such as diameter and pitch with exceptional accuracy. This level of control ensures consistent production to exact specifications, reducing waste and optimizing material utilization.
Streamlined Workflow
The Lockformer Spiral Tube Former 2.0 enhances productivity by streamlining workflow and reducing setup times. With intuitive controls and a user-friendly interface, operators can quickly switch between different tube sizes and configurations. Its high-speed production capabilities enable fabricators to meet tight deadlines and customer demands without compromising quality.
Operator Safety and Comfort
Prioritizing operator safety and comfort, the Lockformer Spiral Tube Former 2.0 features built-in safety mechanisms and ergonomic design elements. By creating a secure and conducive working environment, this machine minimizes the risk of accidents and operator fatigue, promoting long-term sustainability and efficiency in the fabrication process.
In conclusion, the Lockformer Spiral Tube Former 2.0 sets new standards of excellence in HVAC duct and fitting fabrication. From precise seam welding to streamlined workflow and operator safety, this machine provides comprehensive solutions to common challenges, empowering fabricators to produce high-quality spiral tubes efficiently and reliably.
